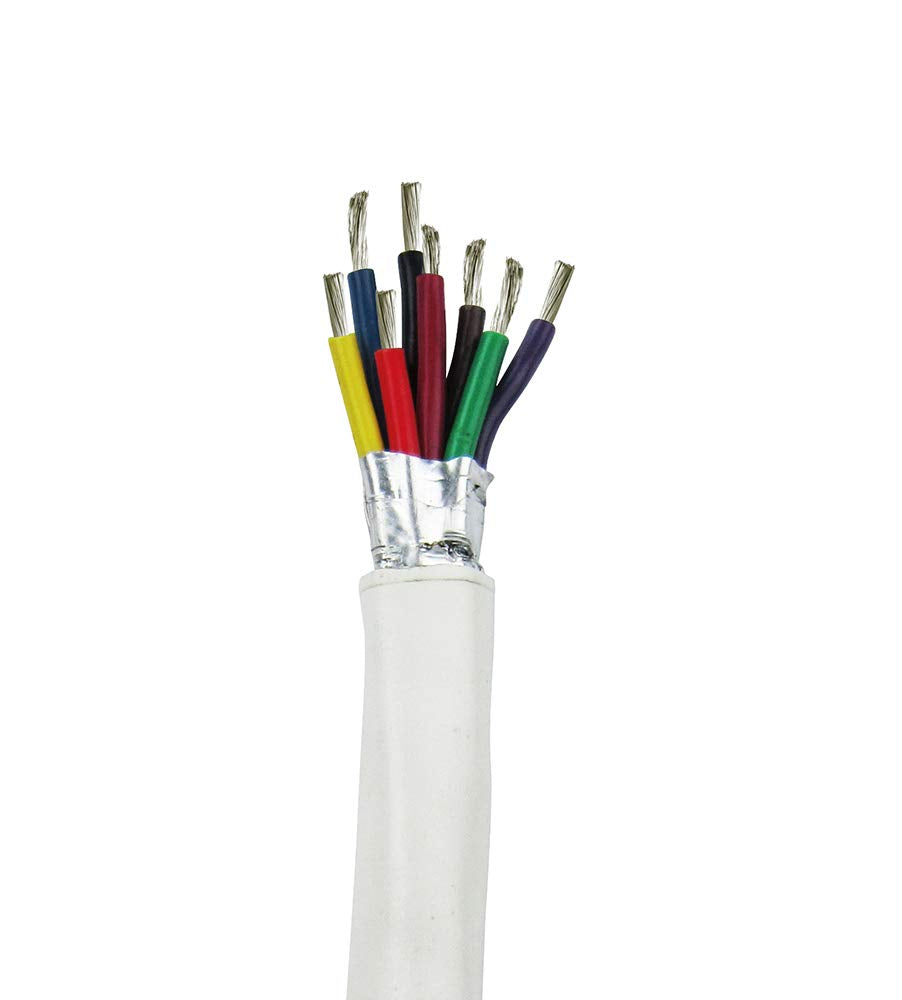

20/8 AWG Tinned Copper Marine Wire 200 Feet White Jacket X430
20/8 AWG Tinned Copper Marine Wire 200 Feet White Jacket X430
Made from high-quality, ultra-flexible Type III pre-tinned copper, which helps prevent corrosion and lengthens the life of the wire
The high grade PVC jacket is RoHS compliant and resists gasoline, oil, ultra-violet radiation, abrasion, and moisture, which makes this wire great for harsh marine environments
This wire and insulation is built to be very flexible, allowing it to be bent tightly without cracking or tearing the insulation or sheathing
Conductors are color coded to meet marine ABYC standards, and includes a drain wire for grounding.
Specifications: 300 volts, 105°C dry, 75°C wet | Wire OD: 8.2mm | Conductor Specifications: 10 Strands at 0.030' | Drain Wire (Ground) wire: 7 Strands at 0.030'
Common Sense Marine Signal Wire is AWM 2462 style, and features high-quality flexible Type III pre-tinned copper, which helps prevent corrosion and lengthens the life of the wire. The high grade PVC jacket is RoHS compliant and resists gasoline, oil, ultra-violet radiation, abrasion, and moisture, which makes this wire great for harsh marine environments. This wire and insulation is built to be very flexible, allowing it to be bent tightly without cracking or tearing the insulation or sheathing. The conductors are color coded to meet marine ABYC standards, and includes a tap wire for grounding.
Specifications:
300 volts, 105°C dry, 75°C wet
Wire OD: 8.2mm
Conductor Specifications: 10 Strands at 0.030'
Tap (Ground) wire: 7 Strands at 0.030'
Conductor insulation colors: Black, Red, Green, Blue, Brown, Orange, Purple and Yellow
