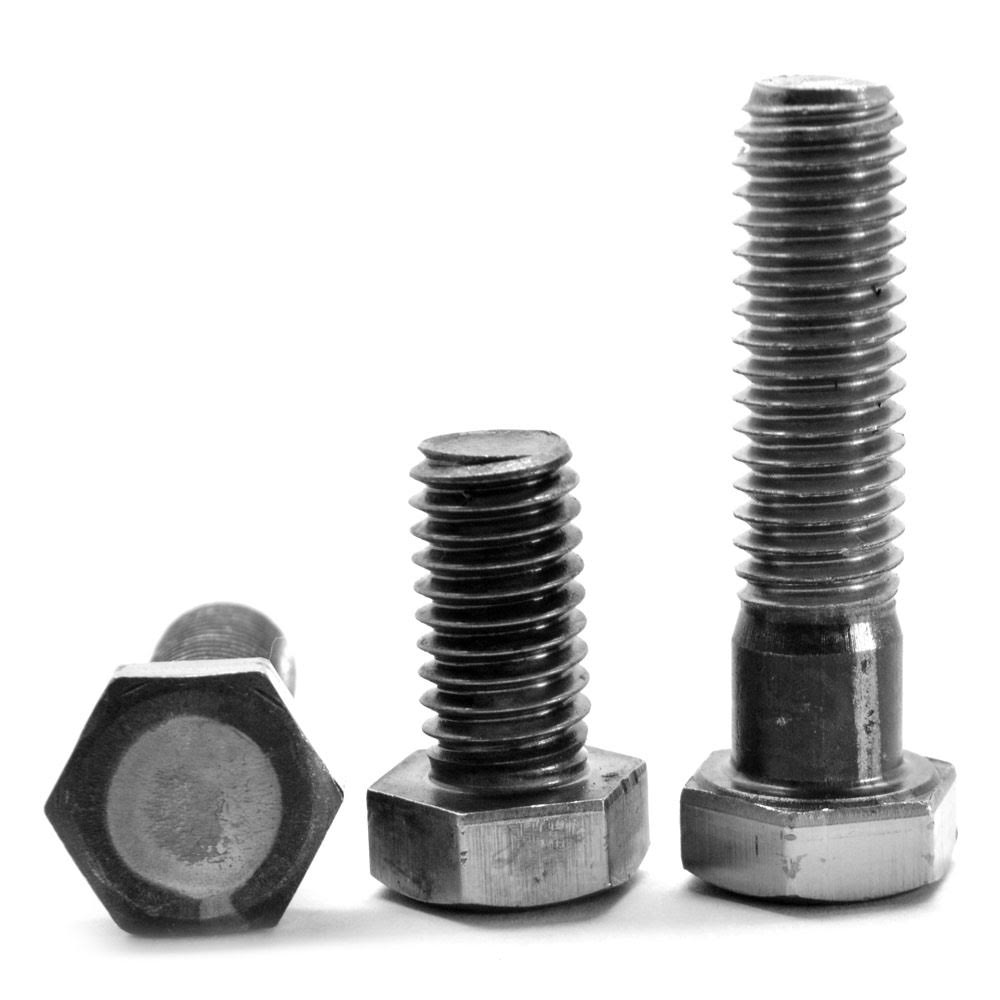

7/8x22-9 x 32x226x22THD Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Plain Finish K33633
Sale price
$21.95
Regular price $104.97
Skip to product information
Part #: 0000-135445. Buy as few as 8 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-135445 Fastener Type: Hex Bolt Size Description: 7/8'-9 x 32'6'THD Diameter/Nominal Size: 7/8' Length: 32' Wrench Size/Across Flats: 1 5/16' (1.285-1.312') Width Across Corners: 1.465-1.516' Head Height: 35/64' (0.531-0.563') Thread Pitch: 9 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: 6' THD System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Plain Finish (No Plating) Head Type: Hex Drive Type: External Hex Standards Met: A307 Average Piece Weight: 5.5833100 lbs. Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts. Hex bolts are similar to hex cap screws. What is the difference between a hex cap screw and a hex bolt? A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head. A hex cap screw is often called a finished hex bolt. Hex bolts have a flat end and lack the washer face under the head. Hex bolts may have an undersize body in longer lengths.
7/8x22-9 x 32x226x22THD Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Plain Finish K33633
Sale price
$21.95
Regular price $104.97
Shipping calculated at checkout.
