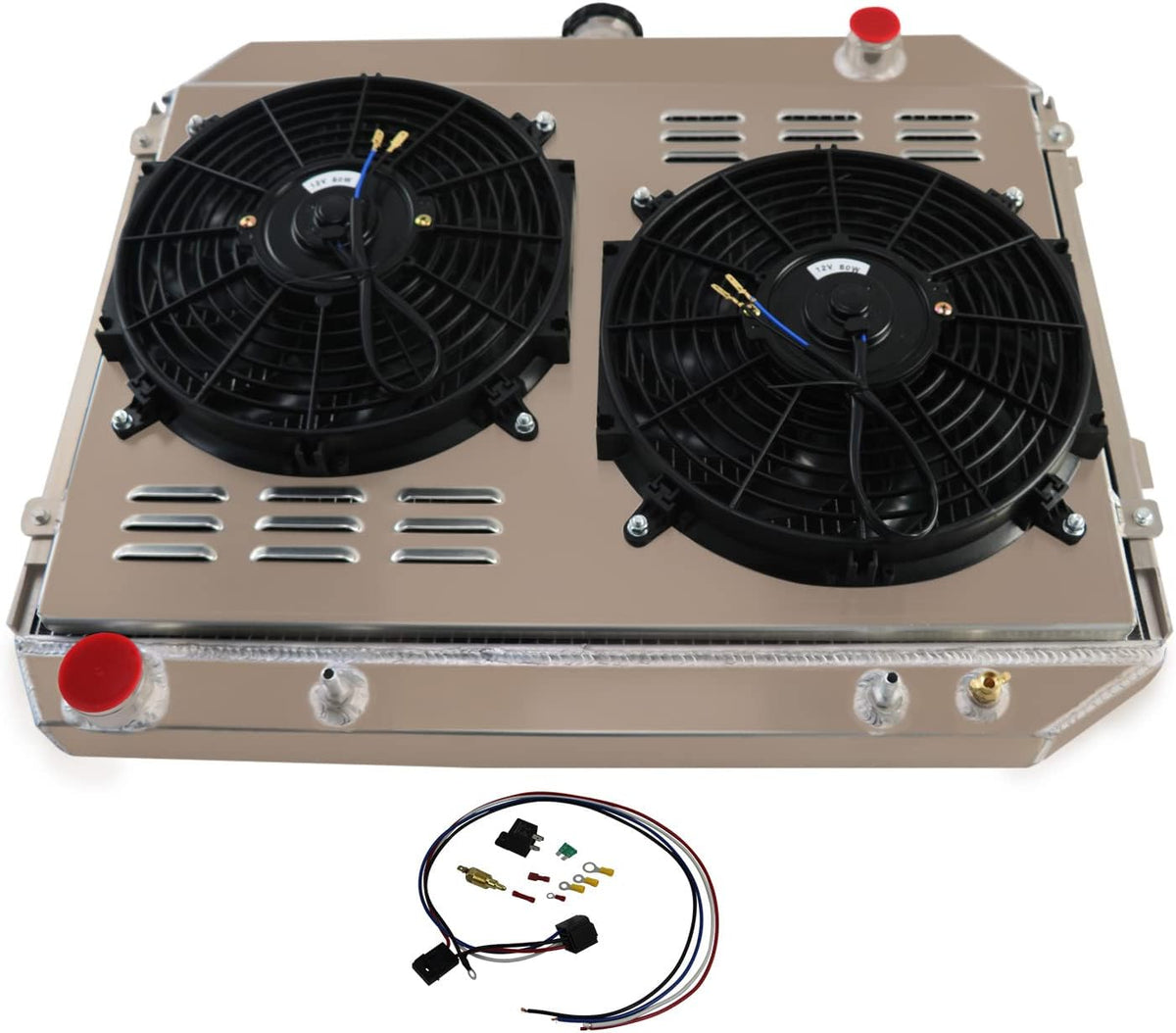

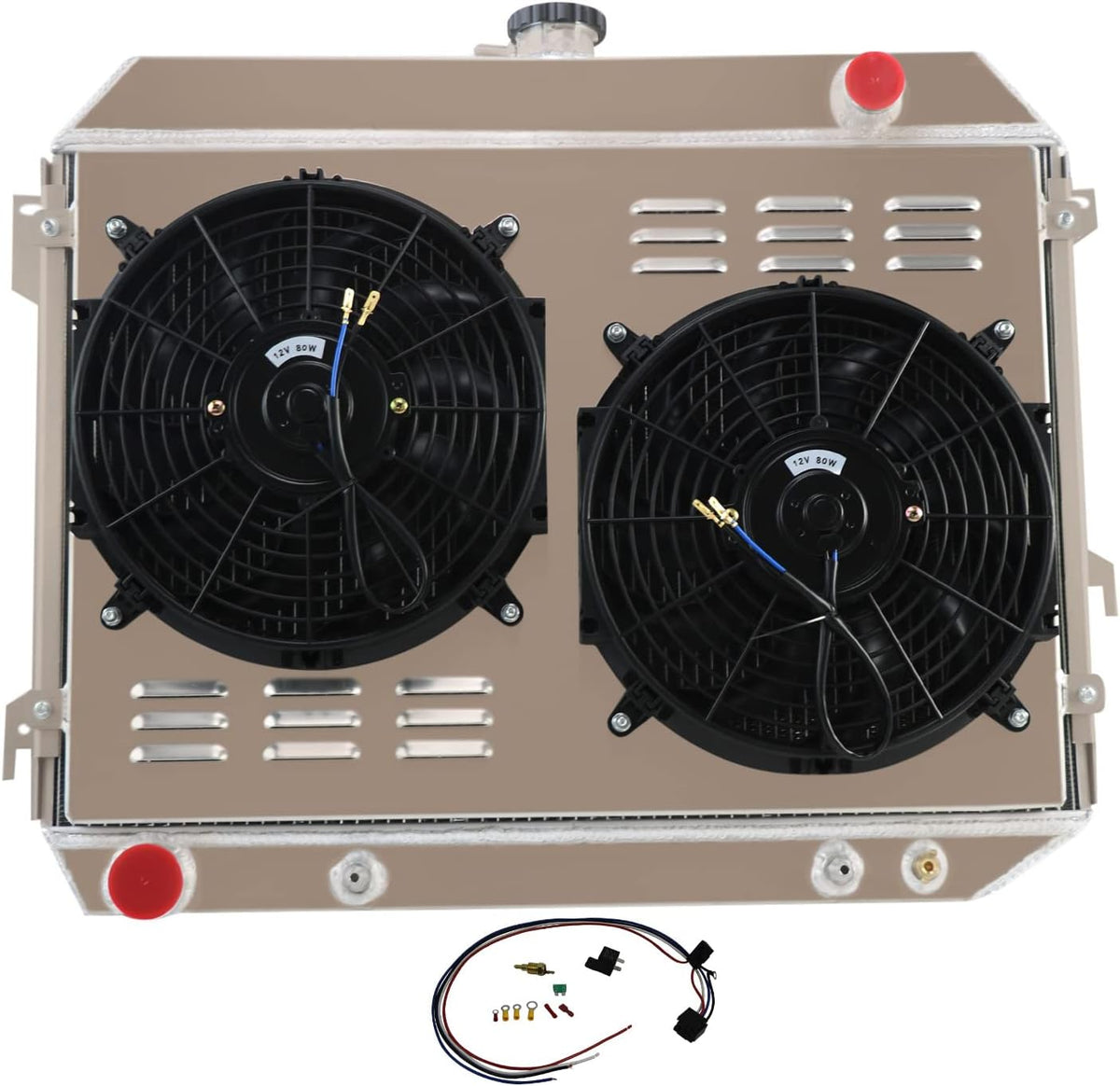

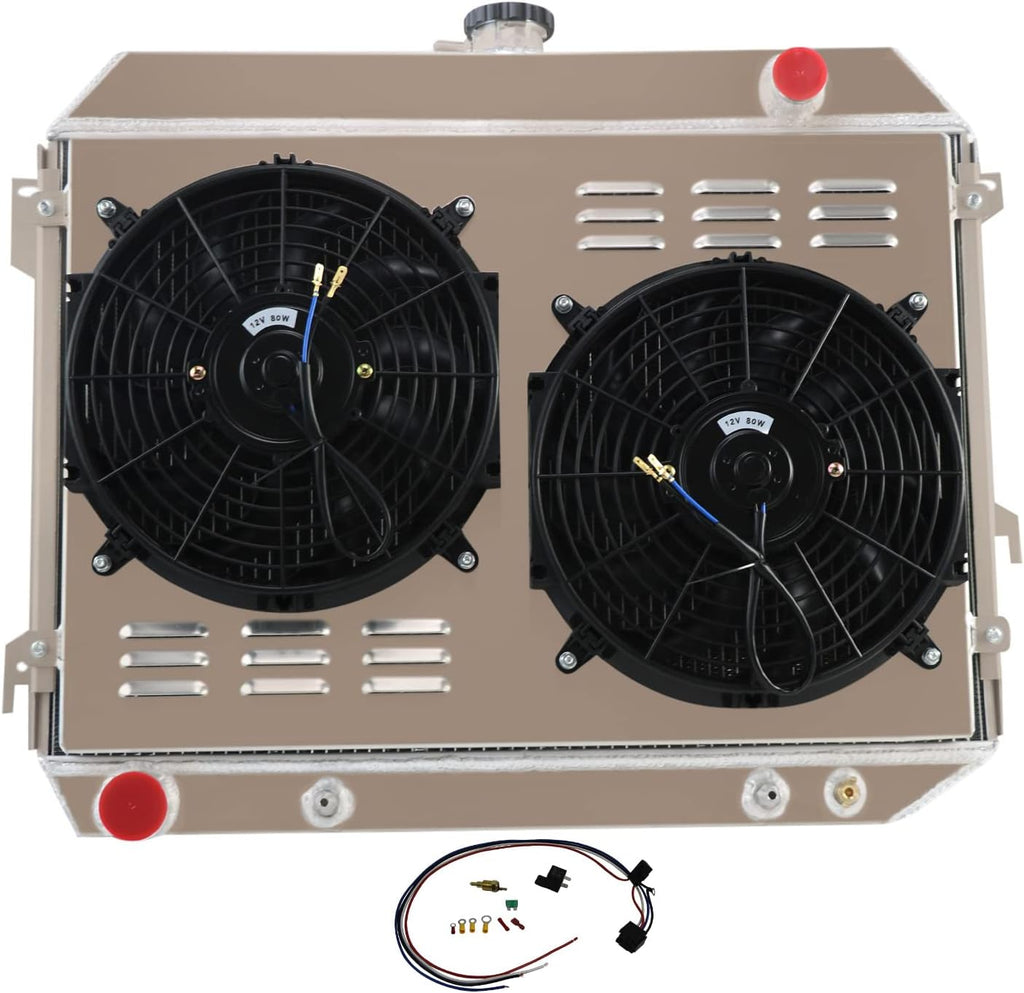

3 Row Core Radiator with 2 X 12 Fan B345153
3 Row Core Radiator with 2 X 12 Fan B345153
Fit for 1963-1968 Chevy Belair /Impala /Caprice /Chevelle /El Camino /Biscayne All Engines

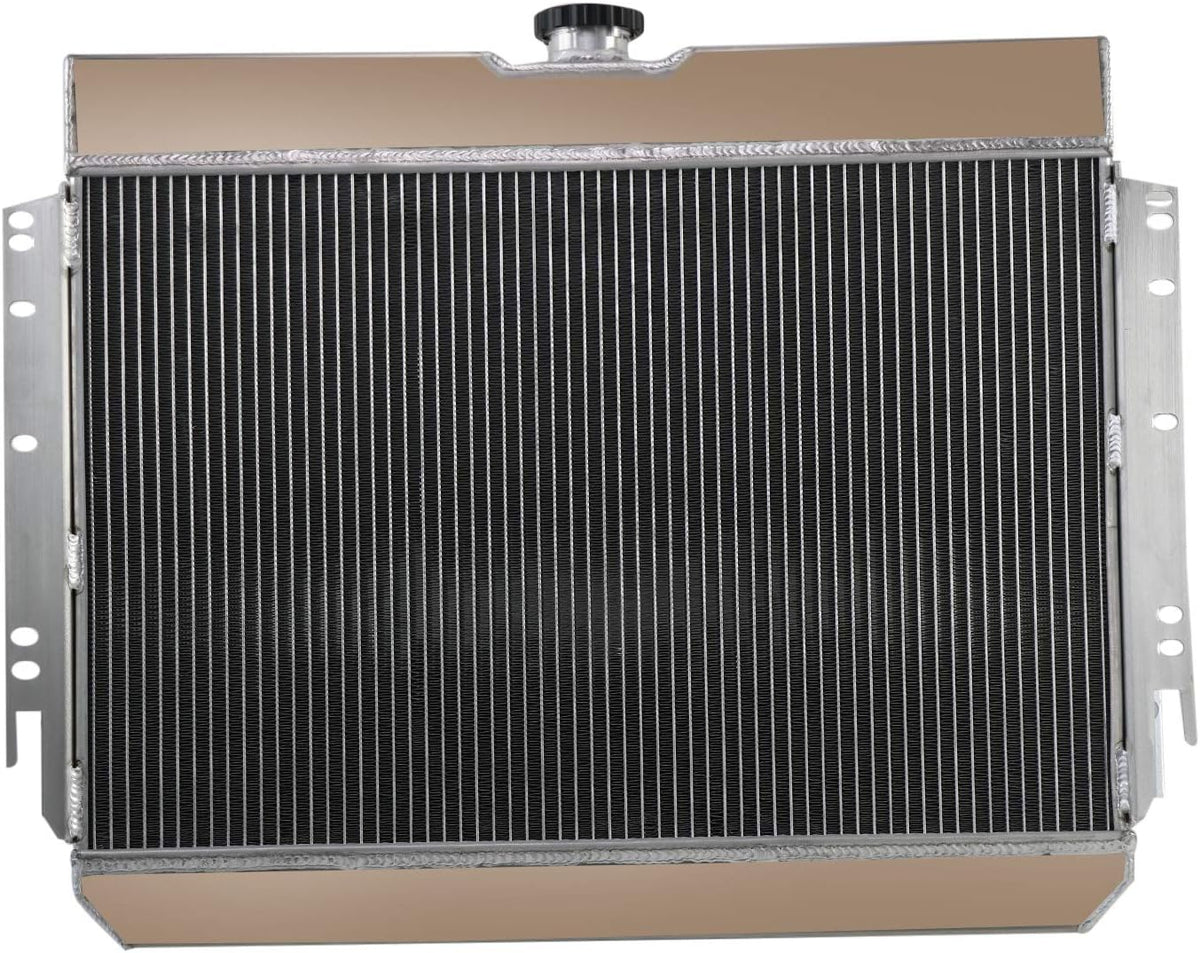

Core Dimensions/Overall Dimensions: 16 inch H x 25-1/4 inch W x 2-1/2 inch T; 22-1/4 inch H x 27-3/4 inch W x 4.13 inch T
Upper Inlet: 1-1/2 inch located on the Driver side; Lower Outlet: 1-3/4 inch located on the Passenger side
Trans Cooler Details: 1/2 inch 20 Straight Thread G1/4
Top Attention: Fast Shipping & USA Stock & 1-Year Warranty for Every Item
Part number: HonorPower- 0078
Fit type: Vehicle Specific

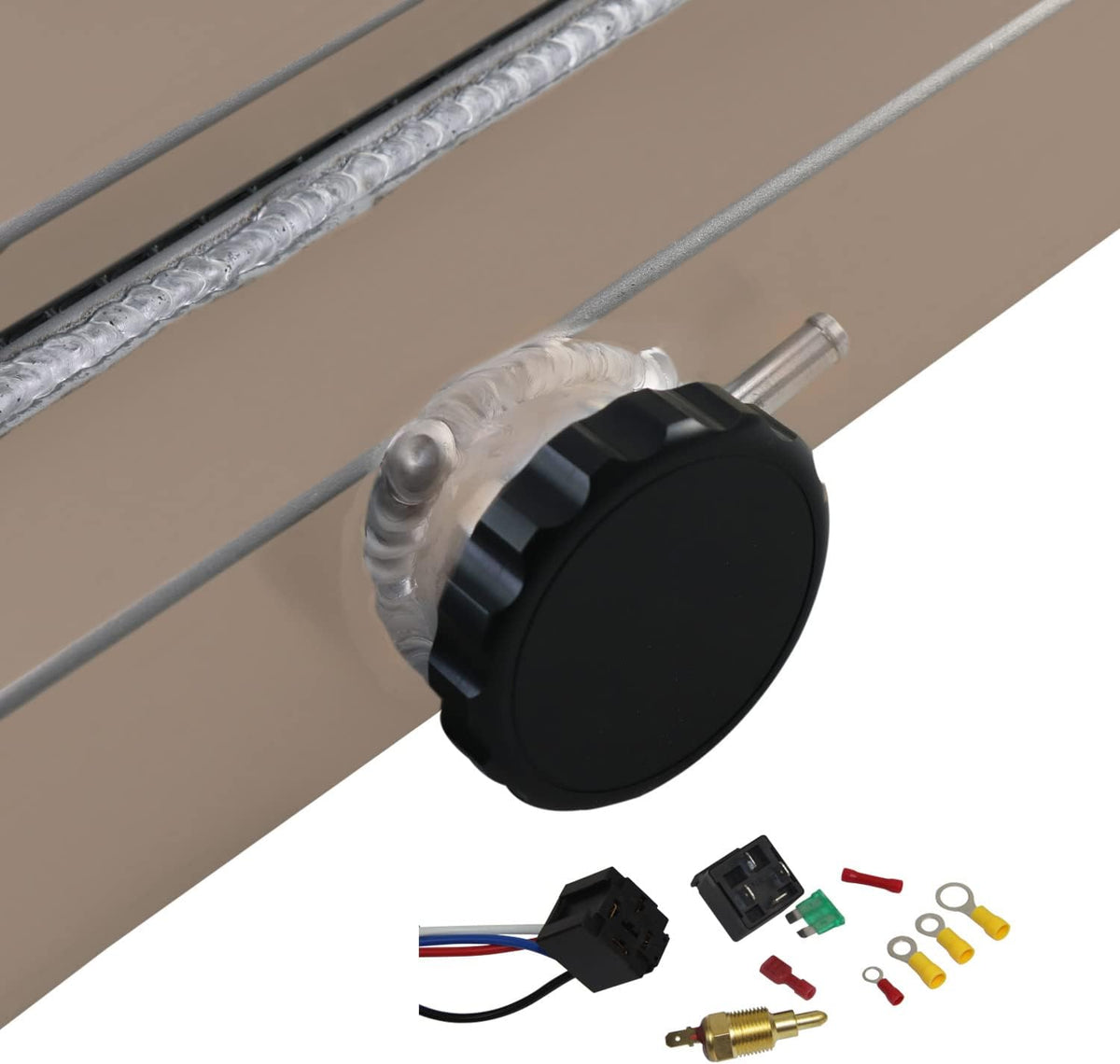

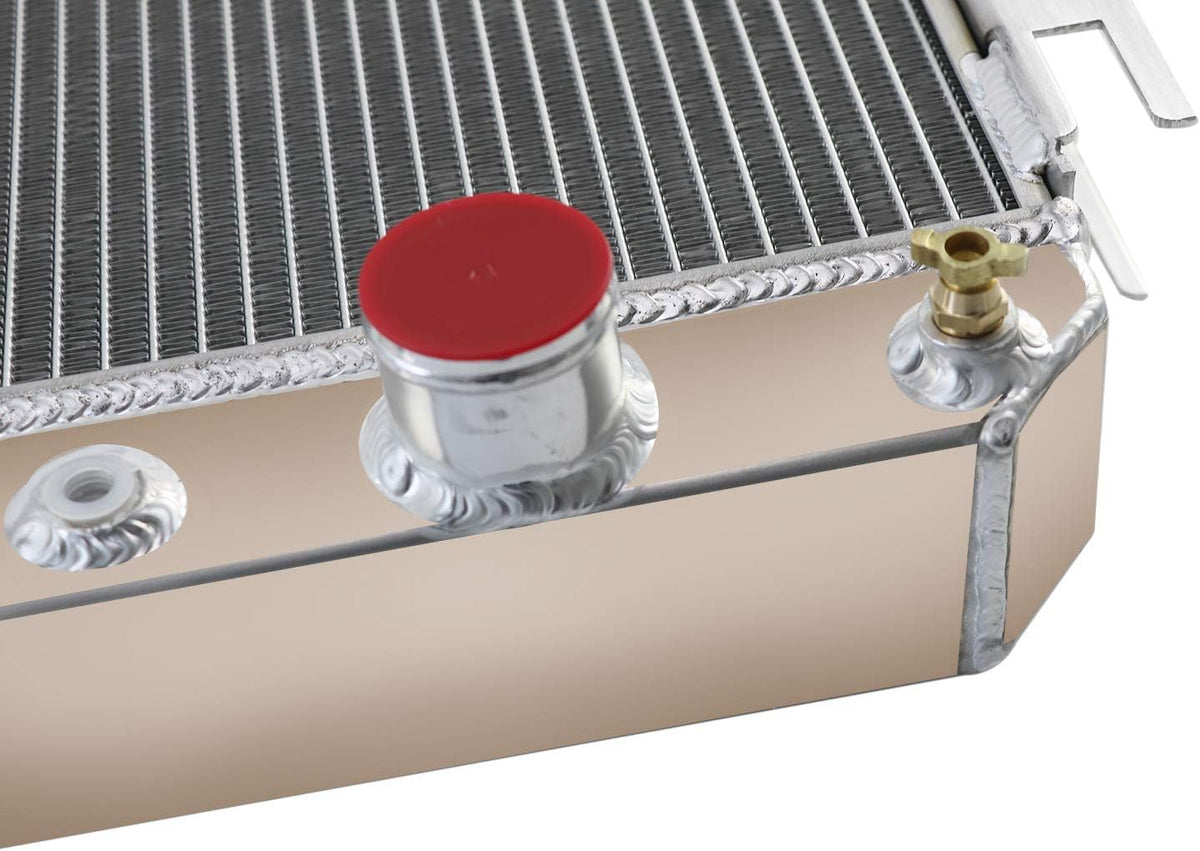

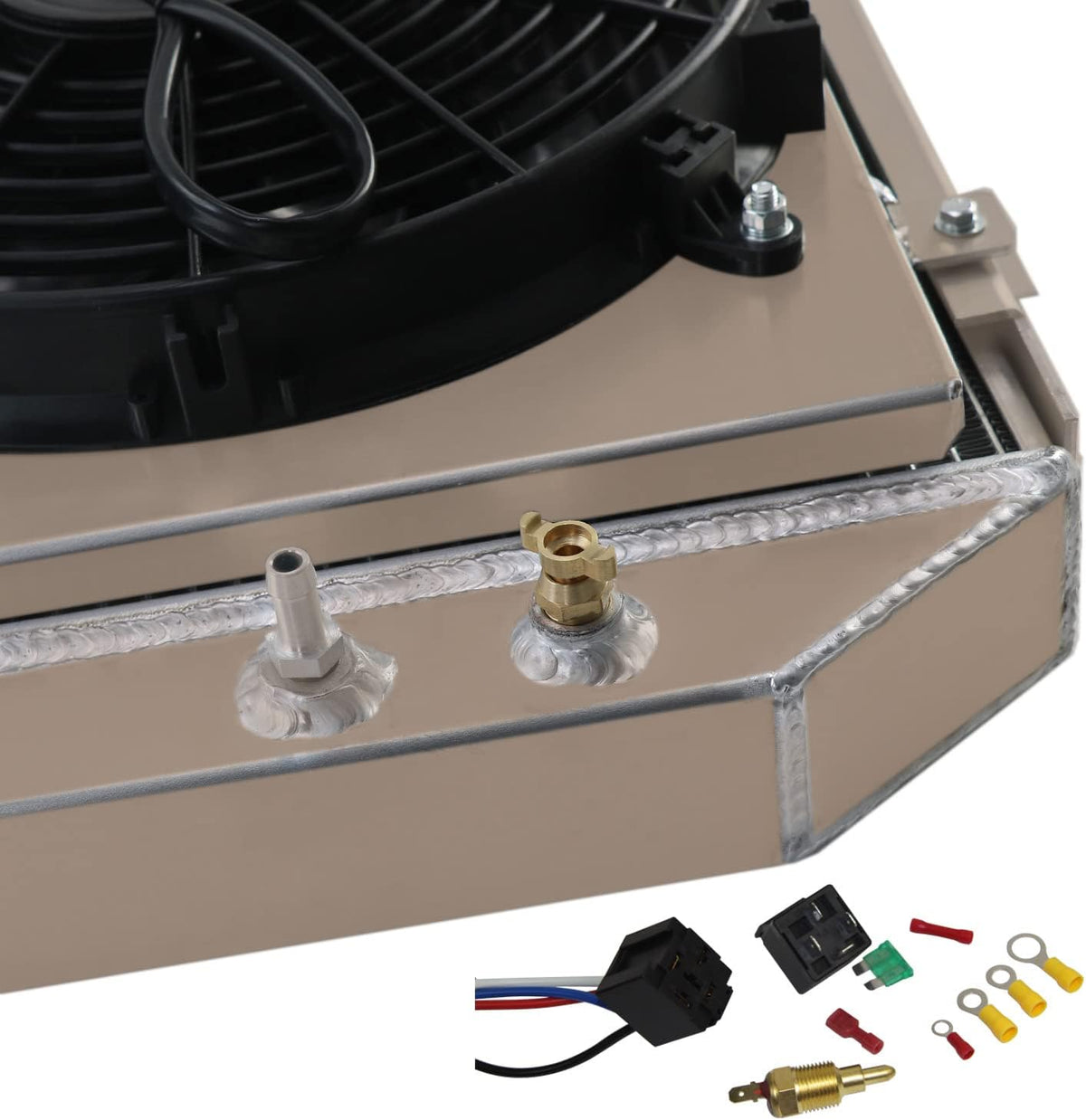

Radiator Specification Material: Full Aluminium 3-Row of tubes Core Racing Design Radiator Flow: Down Flow Mount Type: Bracket Mounting Specs: Vert - 10 1/2 / Horizontal - 26 3/4 Transmission: Automatic and Manual Why Choosing Our Radiator? Made from Aircraft 5057 grade aluminum for prolonged life spanand with raw aluminum finish, 100% Welded By TIG. Carefully crafted to exceptional OE standards for precise fit. Leading-edge Welding Craftsmanship, CE Approval. High Performance Racing Design, Improves Cooling by 45% Temp. CNC machined filler neck and cap. OEM style brass petcock drain. All our products are 100% fully tested to ensure top quality. Fans Details Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Interchange Part Number: CC289,AE289,EC289,MC289,DPI289,CUC289 Other Part Number: DPI289, CU289, 0289AA,RAD289,SDD-RA-MID64, 010690SNN Manufacturer Part Number:040876432895,3002308,3002312,3002313,3005802,3007610 This Radiator Compatible With 1964-1967 CHEVY CHEVELLE/EL CAMINO I6/V8 1963-1968 IMPALA MANY CHEVY GM CARS 1964-1967 Chevelle 1963-1968 CHEVY CHEVELLE/ IMPALA 1963-1968 Chevy Bel-Air 1963-1968 Chevy Impala/Bel Air/Chevelle 1964-1967 Chevy Chevelle Malibu 1963-1968 Chevy Biscayne 1966 1967 Chevy Caprice Direct Fit for Easy Installation Light Weight Direct Bolt-On OE Fitment or Replacement. Notes: Installation instruction is not included. Professional installation is highly recommended!
